Product Summary

The RF2713 is a monolithic integrated quadrature modulator/ demodulator. The demodulator is used to recover the I and Q baseband signals from the amplified and filtered IF. Likewise, the inputs and outputs can be reconfigured to modulate I/Q signals onto an RF carrier. The RF2713 is intended for IF systems where the IF frequency ranges from 100kHz to 250MHz, and the LO frequency   is two times the IF. The IC RF2713 contains all of the required components to implement the modulation/ demodulation function and contains a digital divider type 90° phase shifter, two double balanced mixers, and baseband amplifiers designed to interface with Analog to Digital Converters. The unit operates from a single 3V to 6V power supply.

Parametrics

Parameter
Rating
Unit
Supply Voltage
-0.5 to +7.0
VDC
IF Input Level
500
mVPP
Operating Ambient Temperature
-40 to +85
Storage Temperature
-40 to +150




Features

? 3V to 6V Operation
? Modulation or Demodulation
? IF From 100kHz to 250MHz
? Baseband From DC to 50MHz
? Digital LO Quadrature Divider
? Low Power and Small Size

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RF2713
RF2713
Other

Data Sheet
Negotiable
RF2713PCK-D
RF2713PCK-D

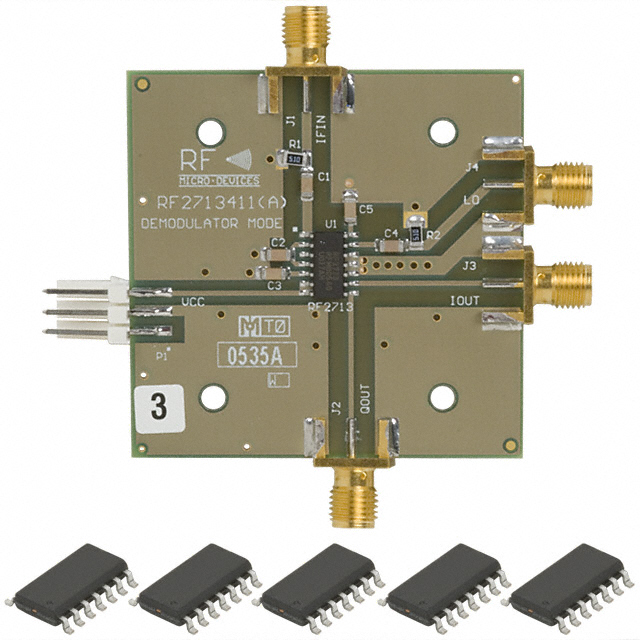

KIT EVAL FOR RF2713 DEMODULATOR
Data Sheet
0-1: $101.25
RF2713PCK-M
RF2713PCK-M

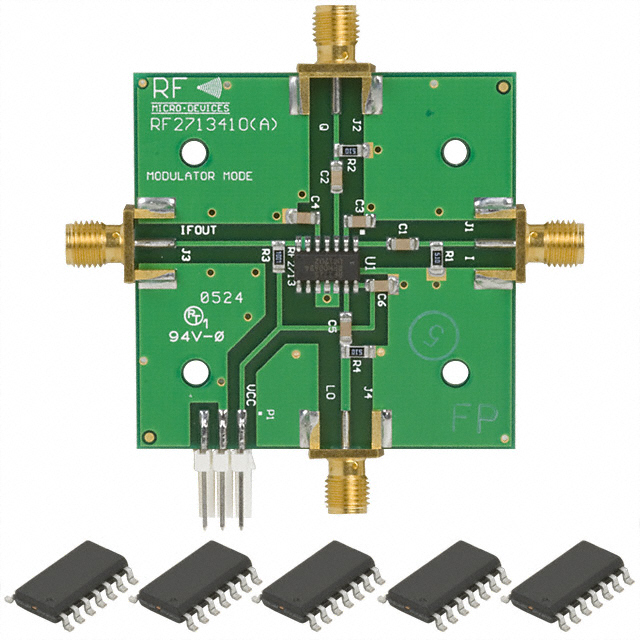

KIT EVAL FOR RF2713 MODULATOR
