Product Summary

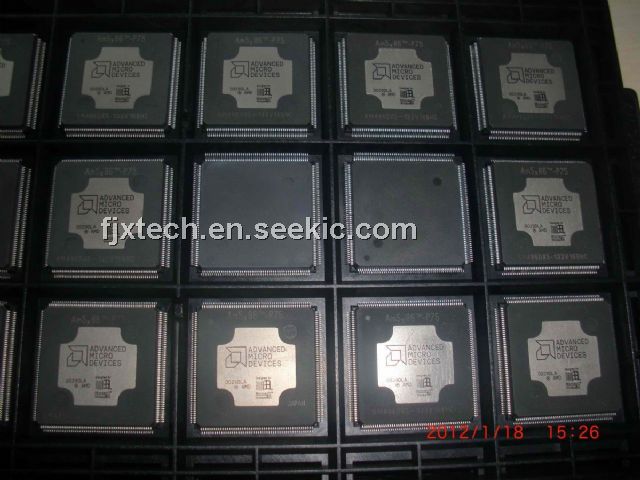

The AM486DX5-133V16BHC is an enhanced microprocessor. The AM486DX5-133V16BHC enhances system performance by raising the microprocessor operating frequency to the highest levels allowed by current manufacturing technology, while maintaining complete compatibility with the standard AM486DX5-133V16BHC processor architecture and Microsoft Windows. The AM486DX5-133V16BHC incorporates write-back cache, flexible clock control, and enhanced SMM.
Parametrics
AM486DX5-133V16BHC absolute maximum ratings: (1)Case Temperature under Bias: - 65℃ to +110℃; (2)Storage Temperature: - 65℃ to +150℃; (3)Voltage on any pin with respect to ground: - 0.5 V to Vcc +2.6 V; (4)Supply voltage with respect to VSS: - 0.5 V to +4.6 V; (5)TCASE: 0℃ to 85℃; (6)VCC: 3.3 V ±0.3 V
Features
AM486DX5-133V16BHC features: (1)High-Performance Design; (2)High On-Chip Integration; (3)Enhanced System and Power Management; (4)168-piPGA package or 208-piSQFP package; (5)IEEE 1149.1 JTAG Boundary-ScaCompatibility; (6)Supports Environmental ProtectioAgencys Energy Star program.
