Product Summary

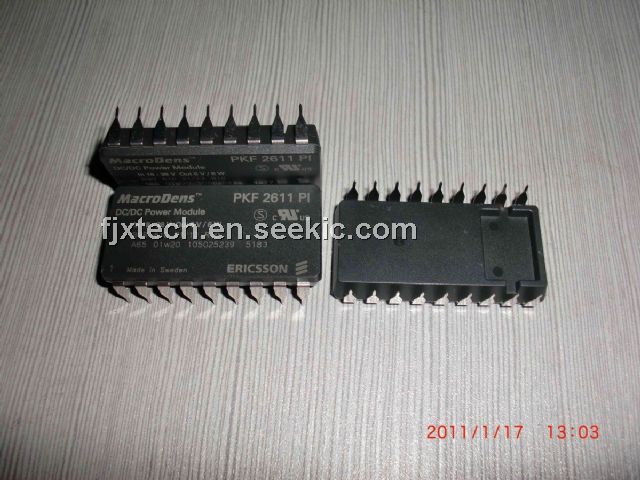

The pkf2611pi is a 6–12 W DC/DC Power Module. It is intended as distributed power sources in decentralized +24V DC power system. Utilization of thick film technology and a high degree of silicon integration has made it possible to achieve a MTBF of more than 4.9 million hours.


pkf2611pi features: (1)SMD and through-hole versions with ultra low component height 8 mm (0.315 in); (2)84% efficiency (typ at 5 V); (3)1,500 V dc isolation voltage; (4)Output current up to 2 A; (5)Switching frequency syncronization; (6)MTBF > 4.9 million hours at +50 °C pin temperature (+40 °C ambient); (7)Low EMI measured according to CISPR 22 and FCC part 15J.
