Product Summary
-

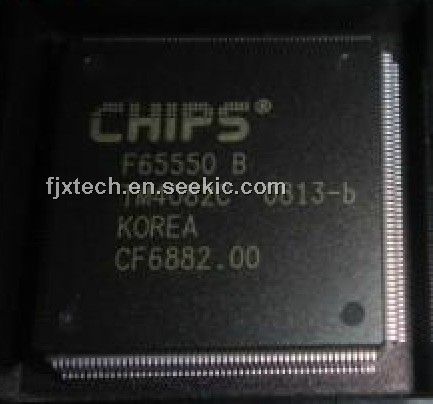

The F65550 is a High Performance Flat Panel/CRT GUI Accelerator. It offers 64-bit high performance and new hardware multimedia support features. The F65550 is a part, integrates a powerful 64-bit graphics accelerator engine for Bit Block Transfer (BitBLT), hardware cursor, and other functions intensively used in Graphical User Interfaces (GUIs) such as Microsoft Windows. The F65550 offers a variety of programmable features to optimize display quality.
Parametrics
F65550 absolute maximum ratings: (1)Power Dissipation:3.0W; (2)Supply Voltage:-0.5 to 7.0V; (3)Input Voltage:-0.5 to VCC +0.5V; (4)Output Voltage:-0.5 to VCC +0.5V; (5)Operating Temp:-25℃ to 85℃; (6)Storage Temp:-40℃ to 125℃.
Features
F65550 features: (1)Source Transparent BLT; (2)Destination Transparent BLT; (3)Double buffer support for YUV and 15/16bpp Overlay Engine; (4)Instant Full Screen Page Flip; (5)Read back of CRT Scan line counters; (6)Direct interface to Color and Monochrome, Single Drive (SS), and Dual Drive (DD), STN & TFT panels; (7)Flexible On-chip Activity Timer facilitates ordered shut-down of the display system; (8)Mixed 3.3V and 5.0V Operation; (9)Fully Compatible with IBM VGA; (10)Zoom Video port; (11)YUV input from System Bus or Video Port; (12)YUV-RGB Conversion; (13)Capture / Scaling; (14)Zoom up to 8x; (15)Interpolation; (16)Double Buffered Video.
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 F65550B |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
F65530A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
F65545B2 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
F65550B |
Other |
|
Data Sheet |
Negotiable |
|
||||
