Product Summary

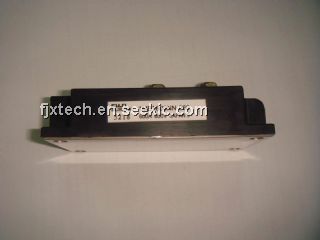

The 1MBI600NN-060 is an IGBT module.

Parametrics

1MBI600NN-060 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 600 V; (2)Gate -Emitter Voltage VGES: ± 20 V; (3)Continuous IC: 600A; (4)Collector 1ms IC PULSE: 1200A; (5)Current Continuous IC: 600A; 1ms -IC PULSE: 1200A; (6)Max. Power Dissipation PC: 2000 W; (7)Operating Temperature Tj: +150 ℃; (8)Storage Temperature Tstg: -40 ~ +125 ℃; (9)Isolation Voltage A.C. 1min. Vis: 2500 V; (10)Screw Torque: Mounting 1 3.5; Terminals 2: 4.5 Nm; Terminals 3: 1.7 Nm.

Features

  • 1MBI600NN-060 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (~3 Times Rated Current).
