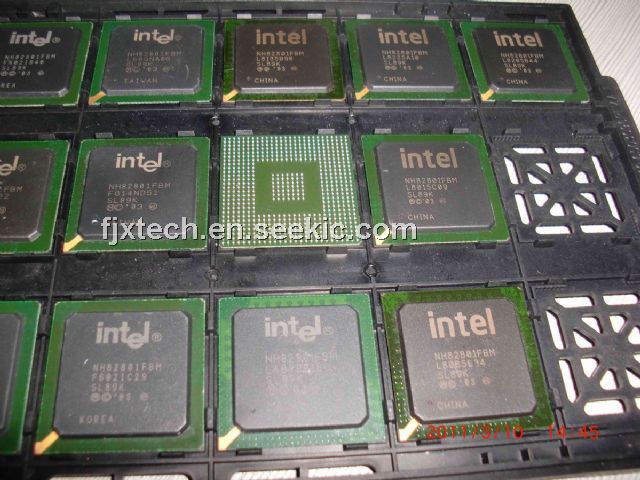

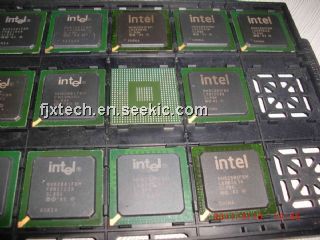

NH82801FBM

I/O Controller, BGA, 0.8 to 1.75 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $14.00~18.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	18.00 / Piece
200 ~ 500 :	14.00 / Piece

PartNumber:: NH82801FBM

Brand:: Intel Corporation - Intel | Pack: | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. JieHui's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2014-02-25

From Other Seller

Part Number:NH82801FBM
US $14.00 - 18.00
Quantity:

piece

Product Summary

The NH82801FBM is an I/O Controller. It provides extensive I/O support. The NH82801FBM incorporates a variety of PCI functions that are divided into six logical devices (B0:D27,B0:D28, B0:D29, B0:D30, B0:D31 and B1:D8). D30 is the DMI-to-PCI bridge and the AC 97 Audio and Modem controller functions, D31 contains the PCI-to-LPC bridge, IDE controller, SATA controller, and SMBus controller, D29 contains the four USB UHCI controllers and one USB EHCI controller, and D27 contains the PCI Express root ports. B1:D8 is the integrated LAN controller.

Parametrics

NH82801FBM absolute maximum ratings: (1)Voltage on any 3.3 V Pin with respect to Ground: -0.5 to Vcc3_3 + 0.5 V; (2)Voltage on any 5 V Tolerant Pin with respect to Ground(V5REF=5V): -0.5 to V5REF + 0.5 V; (3)1.5 V Supply Voltage with respect to VSS: -0.5 to 2.1 V; (4)2.5 V Supply Voltage with respect to Vss: -0.5 to 3.1 V; (5)3.3 V Supply Voltage with respect to VSS: -0.5 to 4.6 V; (6)5.0 V Supply Voltage with respect to VSS: -0.5 to 5.5 V; (7)V_CPU_IO Supply Voltage with respect to VSS: 0.8 to 1.75 V.
